Most people don’t give much thought to the opening on the front or back of their speaker cabinet. But that detail plays a critical role in how your Home Music System performs.
Whether you’re listening at your desk, unwinding in the living room, or spinning vinyl, that opening shapes the way bass is delivered. At Audioengine, we use both front and rear port designs depending on how and where a speaker is intended to be used. Here’s why that decision matters, and what it means for the sound you hear.
What Is a Bass Port?
In simple terms, a bass port is a tuned opening that allows air to move in and out of the speaker cabinet as the woofer operates. This design is known as a bass reflex system, and it's one of the most effective ways to extend low-end response in compact enclosures.
When the woofer pushes forward, air exits the port. When it pulls back, air is drawn in. That movement isn’t just about airflow; it’s part of how the speaker produces sound. A properly tuned port reinforces the output at specific low frequencies, helping the speaker deliver more bass without needing a bigger driver or more amplifier power.
This approach increases efficiency, reduces distortion at higher volumes, and gives you more fullness from a relatively compact box. But the placement of the port changes how those benefits translate in different listening environments.
Why Port Placement Matters For Music
Ports don’t operate in isolation. They interact with the surfaces around them; walls, shelves, desktops, and that interaction affects the way bass behaves.
If a port is placed on the rear of the speaker, it relies on having some distance between the speaker and the wall to allow air to move freely. That space can help reinforce bass by using the wall as a boundary, but it also introduces variables. Too close, and it can overemphasize low frequencies. Too far, and you might lose the benefit entirely.
A front port, by contrast, vents air directly into the room. It’s less influenced by how close the speaker is to the wall, which leads to more predictable performance in tighter spaces or near reflective surfaces. This can be especially important in desktop setups or studio environments where placement options are limited.

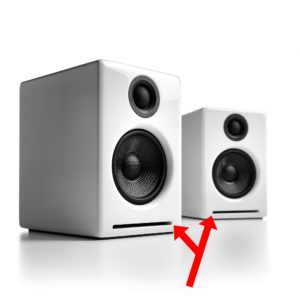

Front-Ported: Designed for the Desktop
Home Music Systems like the A2+, B2 (A2+ AIO) and the HD3 (A2+ HD) are built for close-range listening. Whether they’re sitting under your monitor, on a bookshelf, or up against a wall, they need to deliver consistent, balanced bass without relying on perfect positioning.
By placing the port on the front of the cabinet, we reduce the influence of nearby surfaces. The low-end has a clear path forward, free from reflections or obstruction. This means you get tight, defined bass whether your setup is symmetrical or not, whether you're working on music or streaming a late-night playlist.
Front porting also helps reduce the build-up of unwanted low-end resonance in corners or enclosed shelves. The result is a cleaner sound with better control across the entire frequency range.

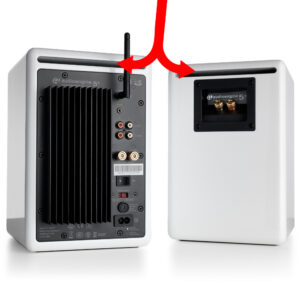

Rear-Ported: Optimized for Bigger Rooms
Our larger Home Music Systems, including the A5+, HD5, and HD6, use rear ports by design. These systems are made for open spaces such as living rooms, studios, or anywhere that allows for more breathing room behind the cabinet.
Rear ports allow us to tune the enclosure for deeper bass extension and a broader soundstage. They interact with the room to enhance low-end output, especially when the speaker has enough distance from walls or is mounted on proper stands.
This approach also lets us maintain a clean front face for the cabinet while dedicating internal volume to the port’s airflow path. It’s a better fit for larger drivers and higher output designs, where headroom, room interaction, and system placement are all part of the equation.
The Bigger Picture: It’s About Intentional Design
There’s no one-size-fits-all answer to port placement. That’s why we make intentional decisions based on how each system will actually be used.
- Need consistent sound on a desk or shelf? A front port avoids wall reflections and keeps bass focused.
- Want full-room performance from a powerful system? A rear port leverages your space to deepen the sound.
The port is just one part of the cabinet’s overall acoustic design, but it plays a significant role in how the system performs in real-world scenarios. That’s why we don’t just default to one type or the other. We build around how the system will be used, how it fits into your space, your setup, and your daily listening habits.
Final Thoughts
Whether it’s vented to the front or the back, a bass port is a silent contributor to how your Home Music System sounds. It helps shape the low end, support efficiency, and maintain clarity at every volume.
So the next time you see that opening in the cabinet, you’ll know it’s doing more than just moving air, it’s helping deliver the full sound your music deserves.
