DAC type
Dual Mode USB and Optical (SPDIF) wireless DAC

Outputs
RCA Stereo/Optical (SPDIF)

D/A converter
PCM1792A

Optical receiver
AK4117

Full-scale output
2.0V RMS

Output impedance
100 ohms

Power source
Included external supply

SNR
(DC to 20 kHz) >115dB

THD+N
(1kHz FS 96kS/s) >0.0015%

Crosstalk
Frequency response
10Hz-30KHz (+/- 0.5dB)

Wireless range (typical)
>100ft

Latency
Product dimensions
4.75×5.5×1″

Shipping weight
4lbs (2.0kg)

Shipping box dimensions
15x9x5″

Environmental
Operating Temperature: 32 to 95 degrees F
Non-operating Temp: -4 to 113 degrees F
Relative Humidity: 5% to 95% non-condensing

Included accessories
RCA cable, 6.5ft
Power adapter with detachable AC cord
Microfiber bag
Setup Guide

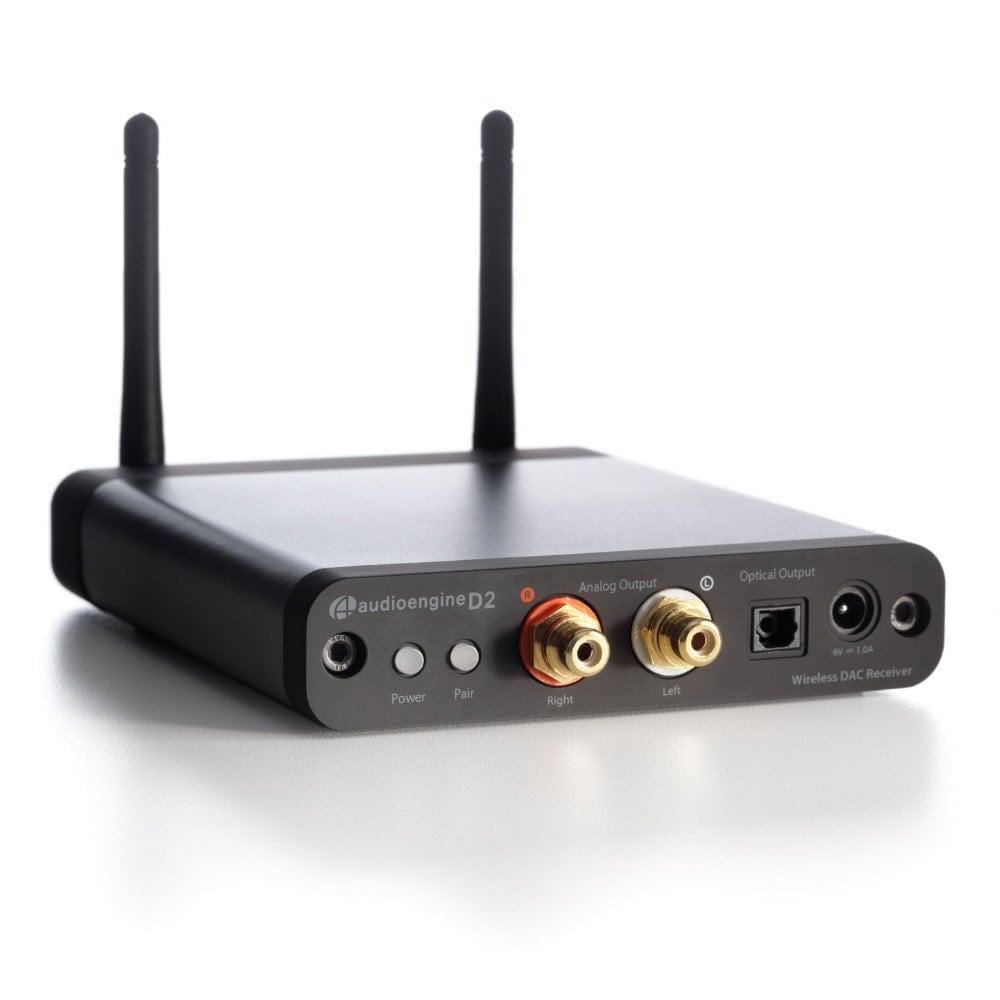

D2 DAC
The D2 Receiver utilizes the PCM1792 DAC, widely know for it’s low noise and high fidelity. Due to the PCM1792’s high signal-to-noise specs and the added benefit of triple redundancy power source conversion and filtering, the D2 presents impressive low noise and low distortion characteristics.
