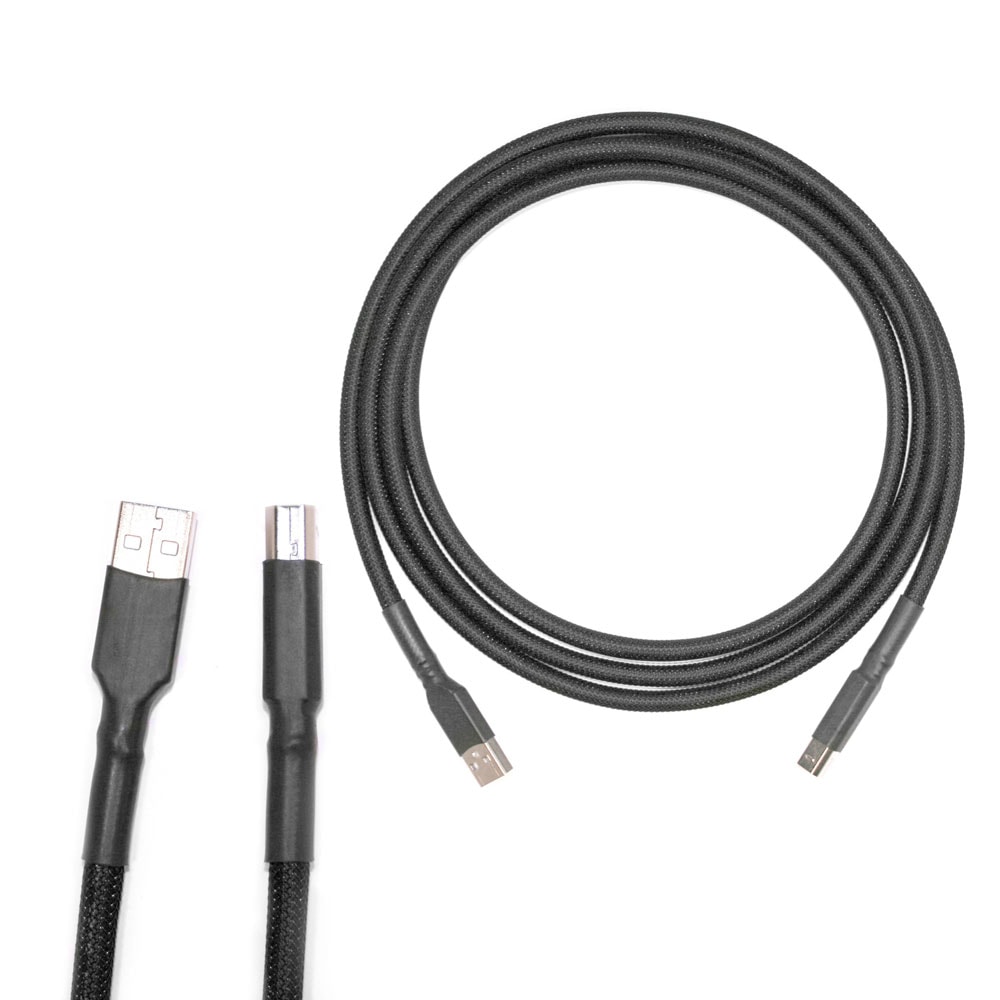

USB Cable — Audioengine Skip to Content

Technical Specifications

General specifications


Shield type
Served 98/0.12A (98×#37)

Capacitance at 1kHz, 20°C
Between Twisted Pair: 99 pF/m (30 pF/Ft)
Between Shield and one of Twisted Pair: 182 pF/m (56 pF/Ft)
Between Shield and Synchro Conductor: 180 pF/m (55 pF/Ft)
Between One of Twisted Pair and Synchro Conductor: 91 pF/m (28 pF/Ft)

Pitch of Twisted Pair
Approx. 30mm (1.18″)

Voltage Breakdown
Must withstand at DC 500V/15sec.

Insulation Material
Flexible PVC

Insulation Resistance
10000 MΩ × m Min.

Tensile Strength
